Kamishiro - Blunt Edge Seagull Clamp

Kamishiro – Blunt Edge Seagull Clamp

Compact. Powerful. Precise.

Unlock next-level clamping performance with the Kamishiro KS-Seagull Clamp — the ideal solution for securing flat workpieces in CNC machining setups. Built for reliability and efficiency, this innovative single-station clamp features a central tension bolt that, with a simple clockwise twist, applies a powerful lateral force and a firm bite. This Blunt-edge variant excels in ferrous material clamping, offering a secure hold with a low-profile footprint. Whether used individually or alongside other work holding components, the KS-Seagull Clamp delivers exceptional stability and versatility to your CNC operations.

Available Variants:

Choose the perfect size for your machining needs:

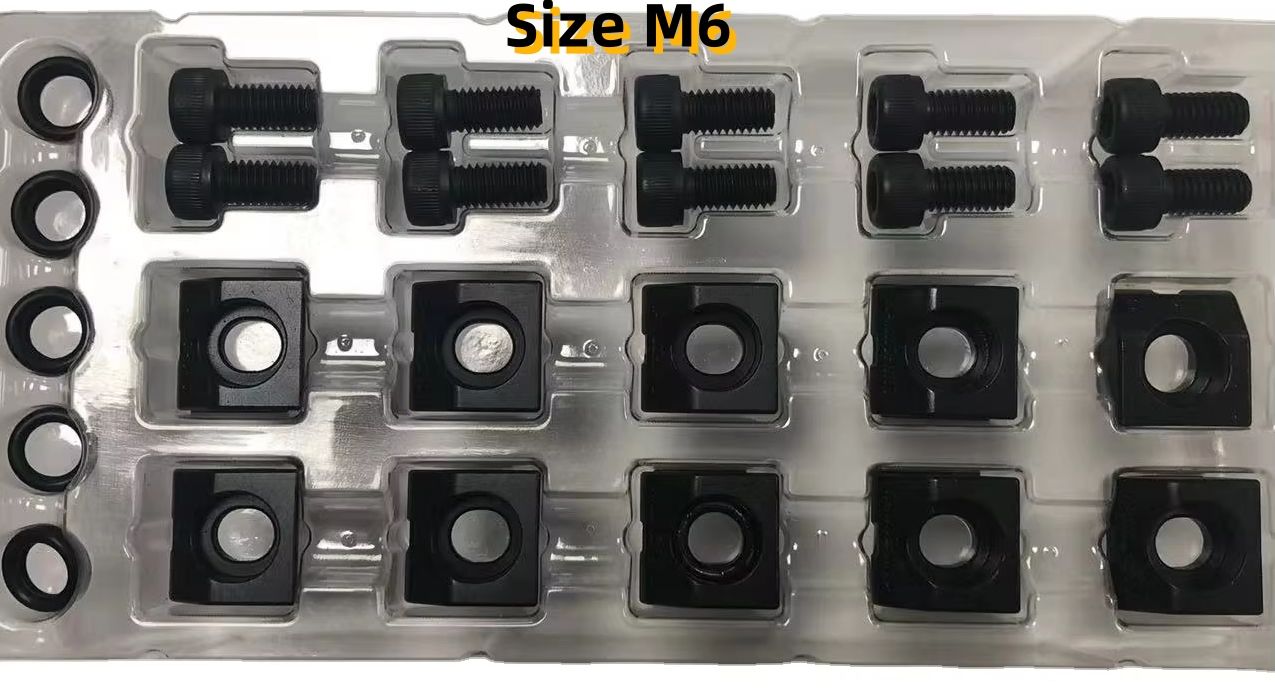

• KS-Seagull-M6 – 10 pieces per set

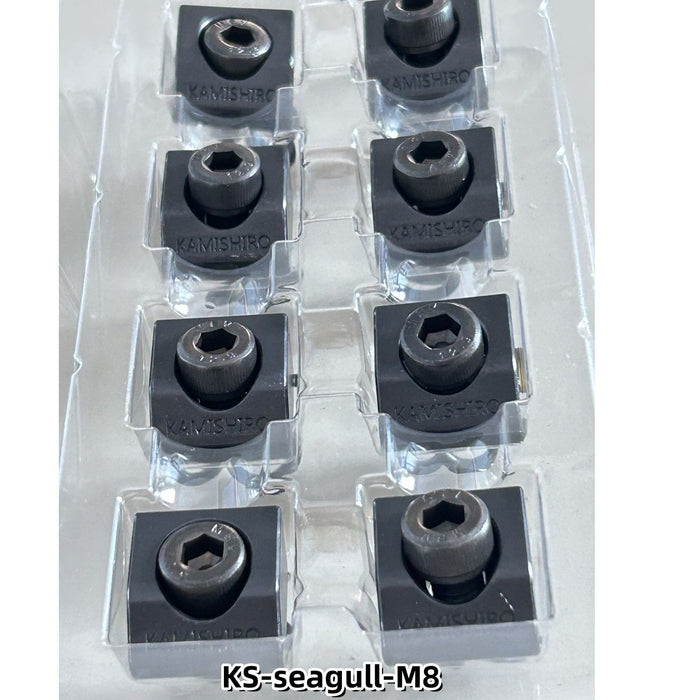

• KS-Seagull-M8 – 8 pieces per set

• KS-Seagull-M10 – 6 pieces per set

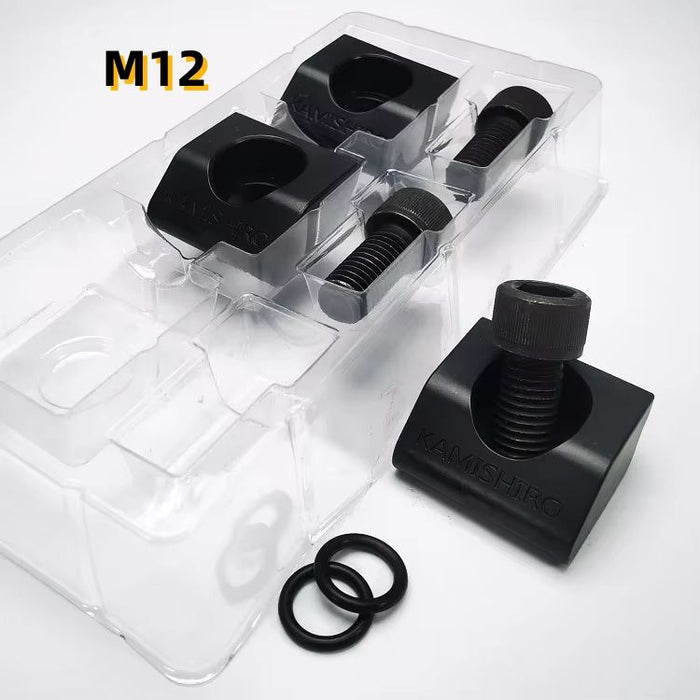

• KS-Seagull-M12 – 3 pieces per set

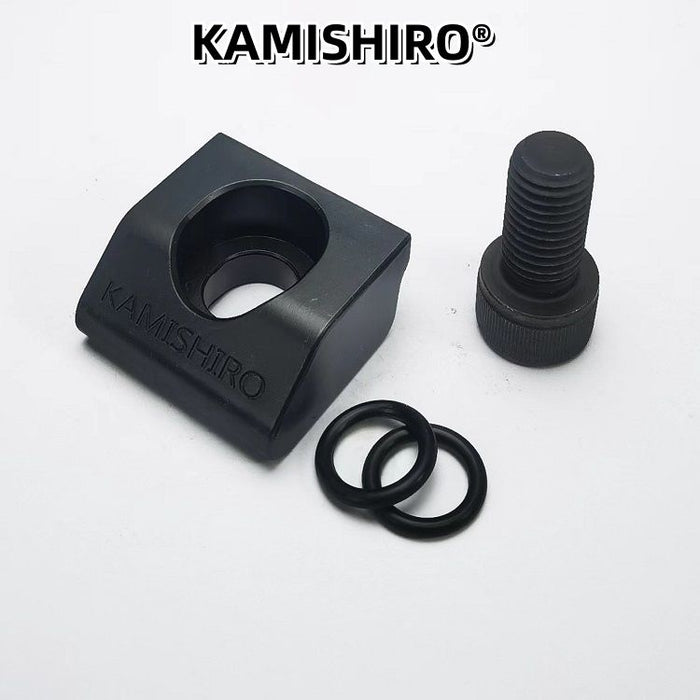

Each set includes x QTY:

• Seagull Clamps

• Socket Head Cap Screws

• Seals

Key Features:

• Smart Clamping Mechanism: Central tension bolt design for fast, secure fixation

• High Holding Force: Applies powerful lateral pressure with minimal torque

• Precision-Engineered: Ideal for clamping flat surfaces with tight tolerances

• Space-Saving Design: Compact profile, perfect for tight machining environments

• Easy Operation: Smooth tightening, low-effort usability

• Modular Flexibility: Use individually or with other work holding systems

• Fully Customized: Can be used alongside your existing fixtures

Technical Specifications:

• Clamp Type: Blunt Edge Seagull Clamp

• Material: SUS440C stainless steel

• Hardness: HRC48–52

• U Perpendicularity: ≤ 0.02mm

• Parallelism: ≤ 0.02mm

• Length Range: 16.8mm – 17.1mm
