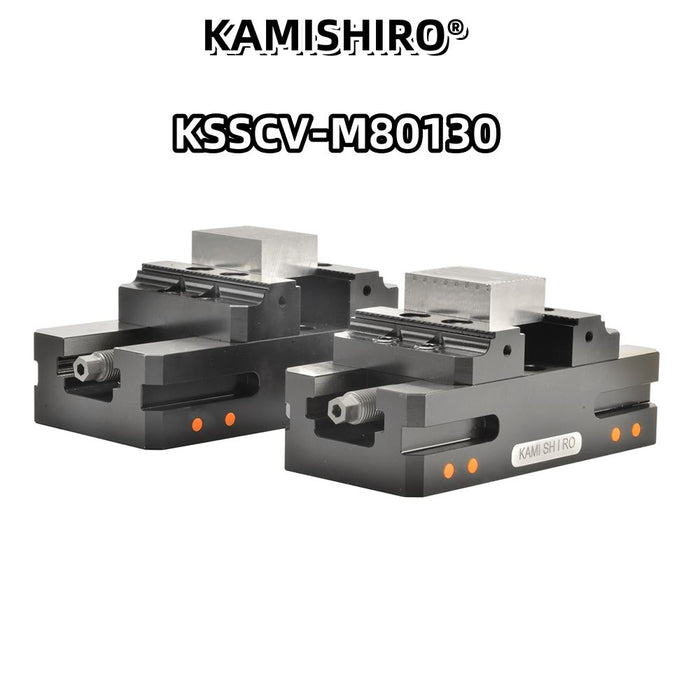

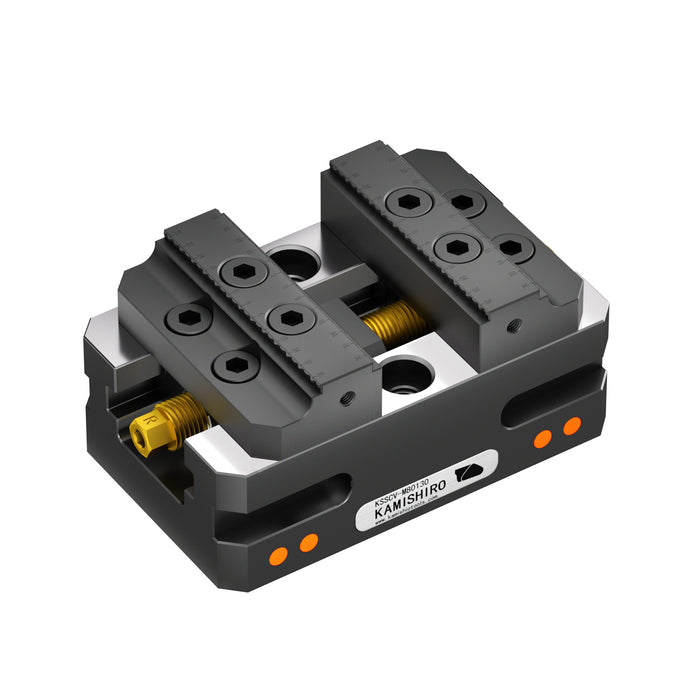

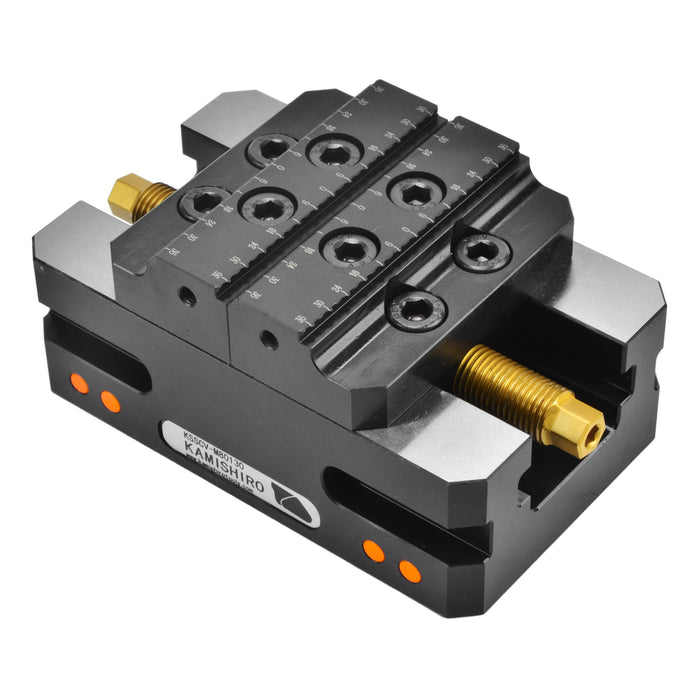

KAMISHIRO 80 x 85 Self-Centering CNC Vise

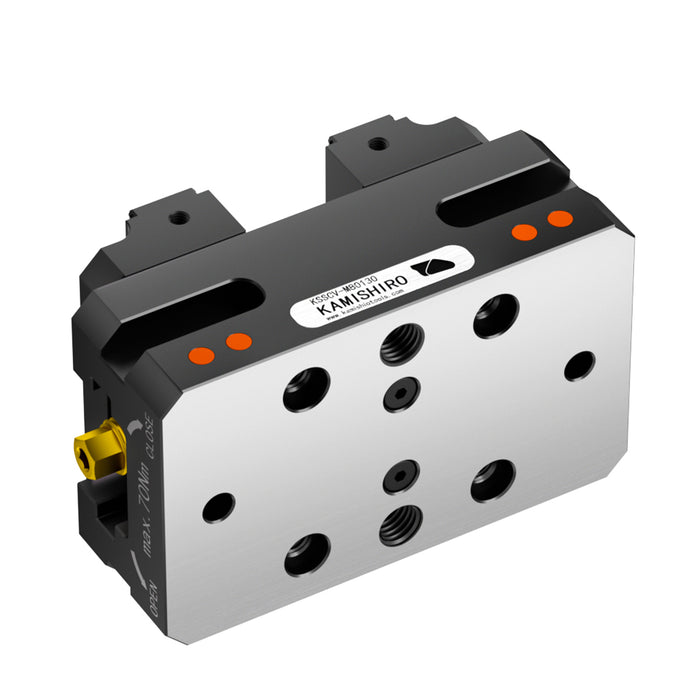

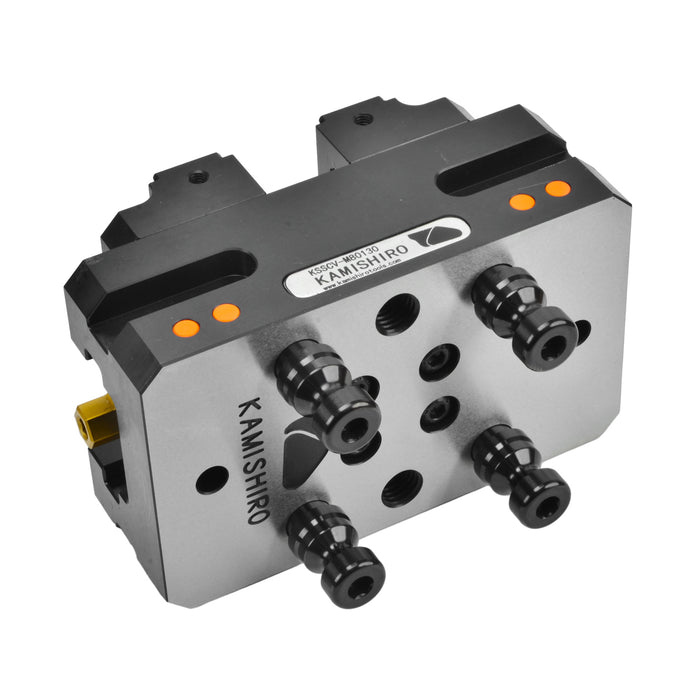

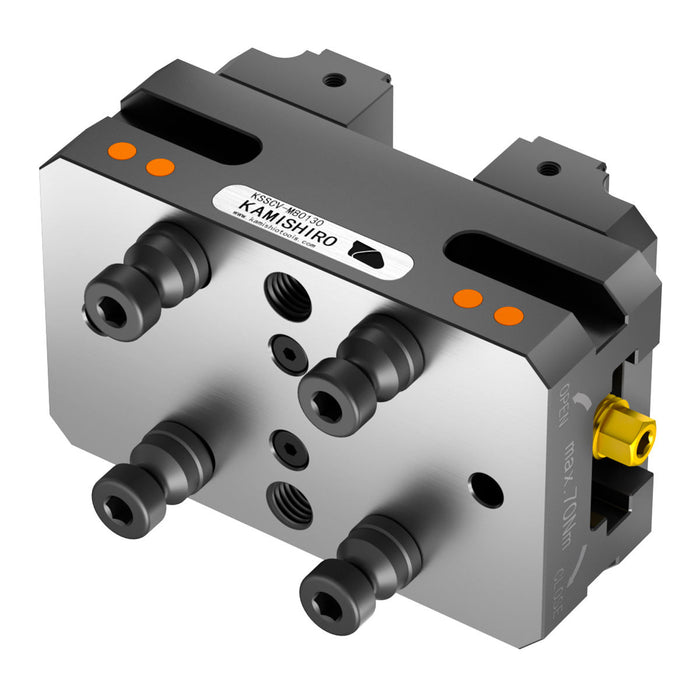

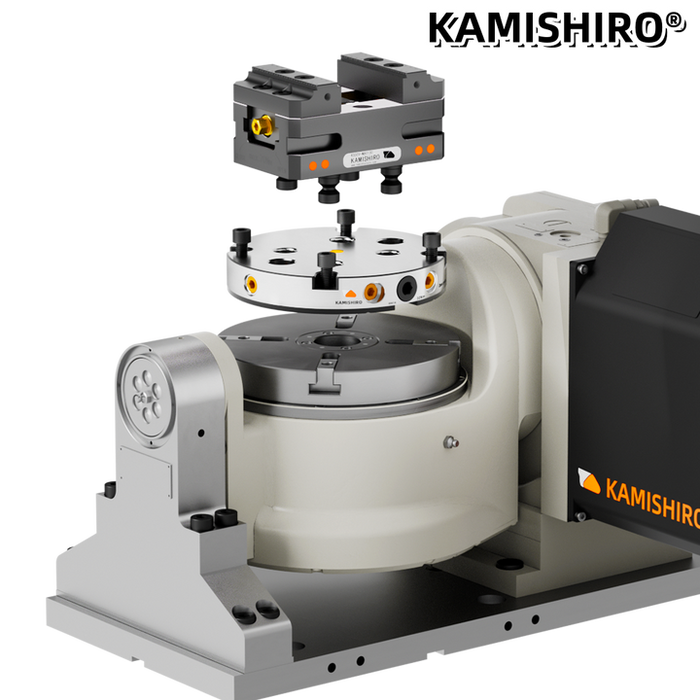

The KSSCV-M80130 Self-Centering Vise from KAMISHIRO is a high-performance, precision clamping solution engineered for modern CNC machining. Fully compatible with 52mm zero point clamping systems—including Lang Zero Point systems—it offers seamless integration into advanced setups. With a maximum opening width of 85mm and centrally adjustable jaws, it ensures perfect centering, enhanced accuracy, and repeatability for a wide range of workpieces.

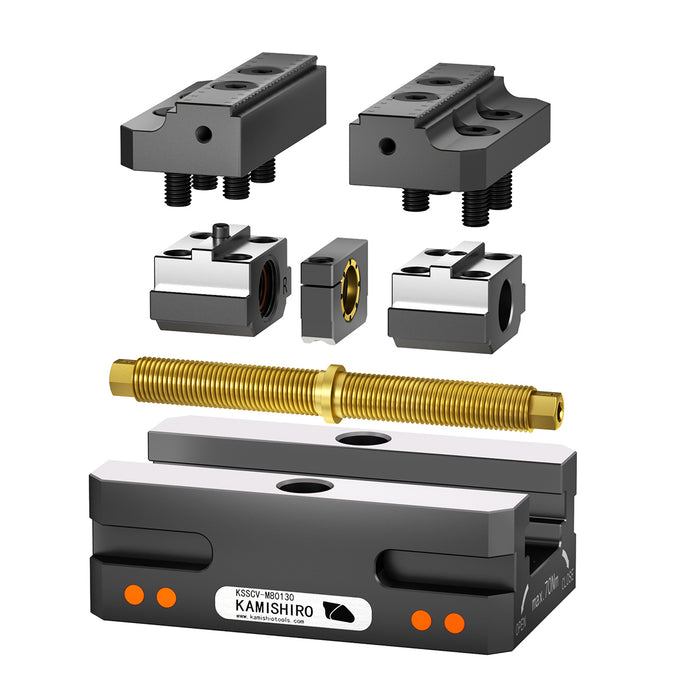

This vise features a patented floating push block design, allowing the jaw and push block to move together flexibly, improving clamping performance and simplifying jaw reversal or replacement. Built with a high-precision toothed guide rail and saw-shaped serrated jaws, the KSSCV-M delivers maximum clamping force, especially on non-hardened materials. Optional jaw types—including dovetail and raised toothed jaws—add to its versatility. Designed for durability and ease of use, it comes complete with hardened steel jaws, a wrench, and two fitting screws, making it a reliable, all-in-one clamping solution.

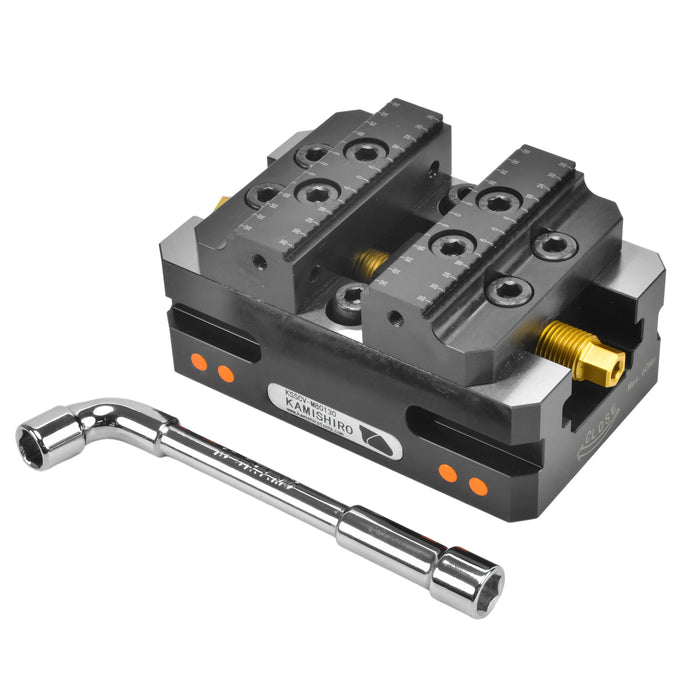

Included with Each Vise:

• 1 Set of hardened steel jaws (standard)

• 1 Wrench

• 2 Setscrews

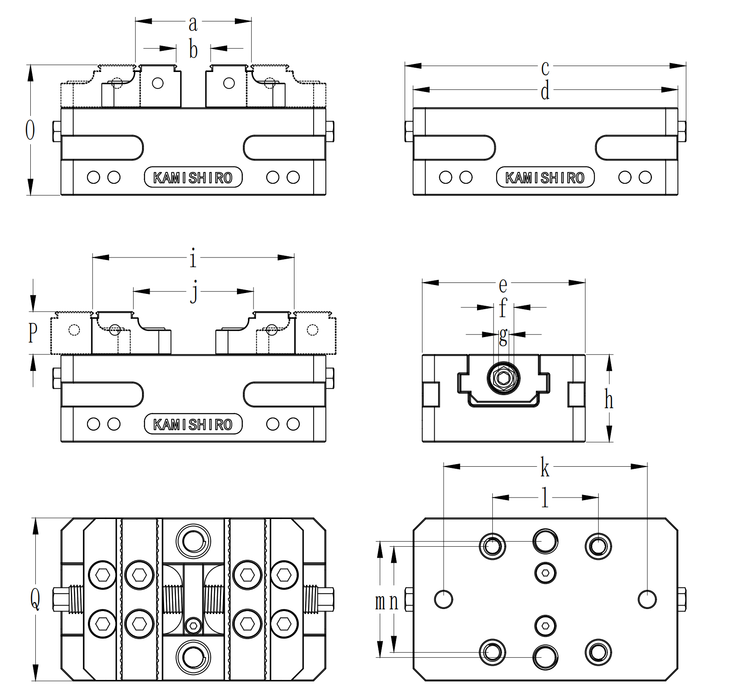

Specifications:

• U PERPENDICULARITY: 0.02mm
• Parallelism: 0.02mm
• Model: KSSCV-M80130
• Size: 130*80*64mm (5.11" x 3.14" x 2.5")
• Material: Alloy steel
• Hardness: HRC48-55
• Jaw width: 80mm
• Clamping Range: 6-85mm

Precautions & Maintenance Guidelines

• Handle with Care
  Avoid contact with sharp objects to prevent surface scratches or damage.

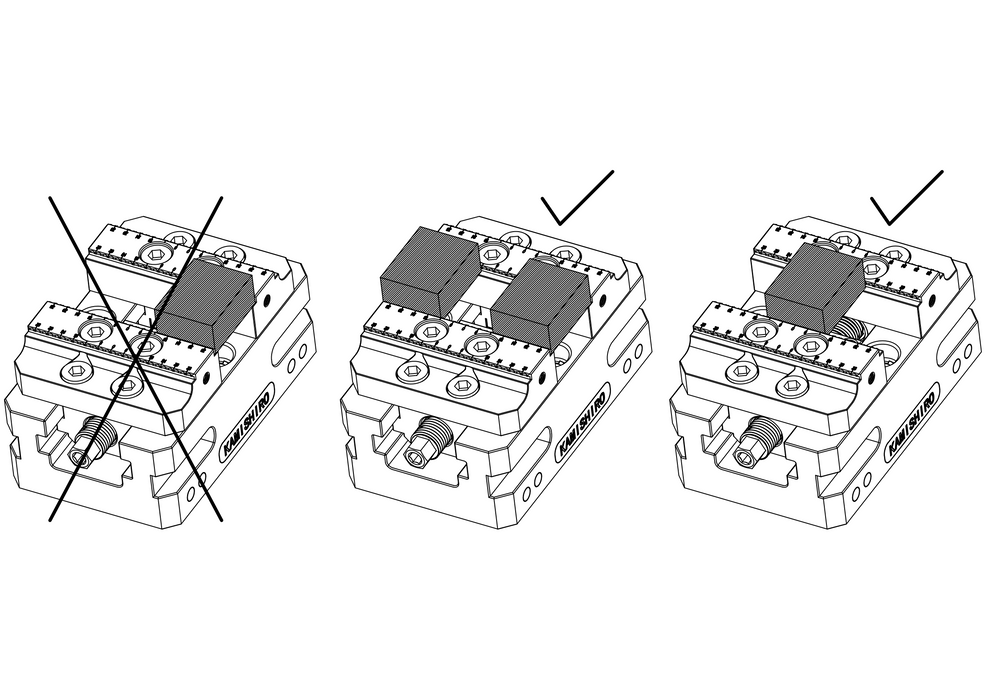

• Do Not Tighten Without a Workpiece
  Never tighten the tension adjustment bolt without a workpiece installed. Doing so may cause permanent deformation or damage to the fixture.

• Clean & Store Properly
  After each use, clean the fixture thoroughly and store it in a safe, dry location. Protect it from impacts, abrasion, and exposure to corrosive substances such as acids or alkalis.

• Regular Maintenance
  Perform routine precision checks and replace any worn or consumable parts promptly to maintain optimal performance.

Additional Info

• Shipping time: Estimated 10–15 days

• Dispatch: Ships within 1–3 days after payment

• Note: Price does not include customs duties
