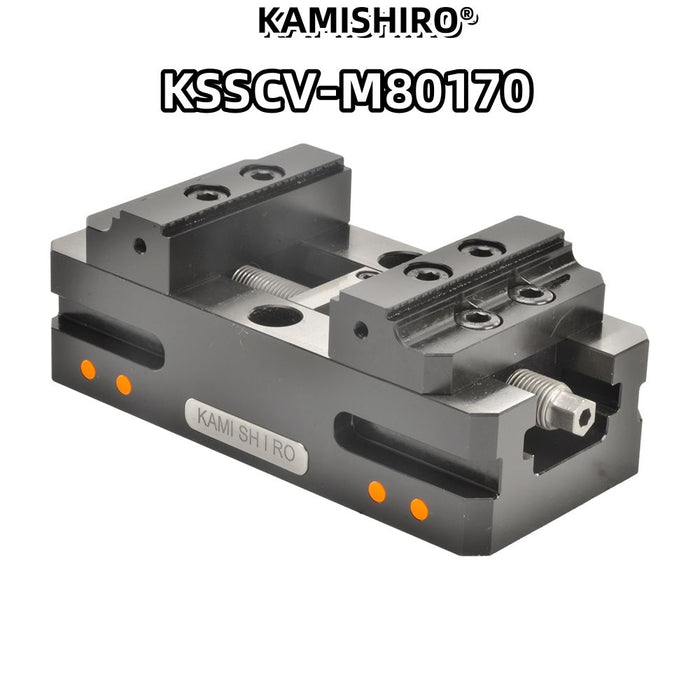

KAMISHIRO 80 x 125 Self Centering CNC Vise

The KSSCV-M80170 Self-Centering Vise from KAMISHIRO is a high-performance, precision clamping solution engineered for modern CNC machining. Fully compatible with 52mm zero point clamping systems—including Lang Zero Point systems—it offers seamless integration into advanced setups. With a maximum opening width of 125mm and centrally adjustable jaws, it ensures perfect centering, enhanced accuracy, and repeatability for a wide range of workpieces.

This vise features a patented floating push block design, allowing the jaw and push block to move together flexibly, improving clamping performance and simplifying jaw reversal or replacement. Built with a high-precision toothed guide rail and saw-shaped serrated jaws, the KSSCV-M delivers maximum clamping force, especially on non-hardened materials. Optional jaw types—including dovetail and raised toothed jaws—add to its versatility. Designed for durability and ease of use, it comes complete with hardened steel jaws, a wrench, and two fitting screws, making it a reliable, all-in-one clamping solution.

Key Features:

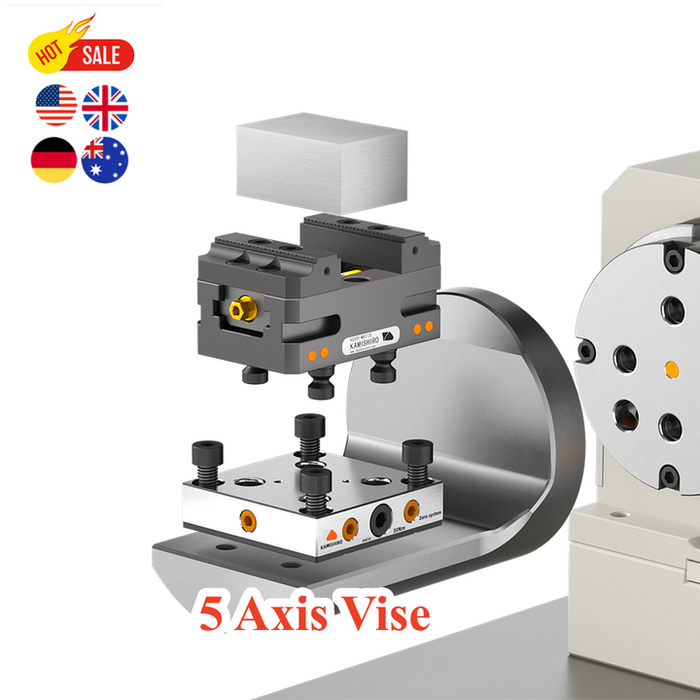

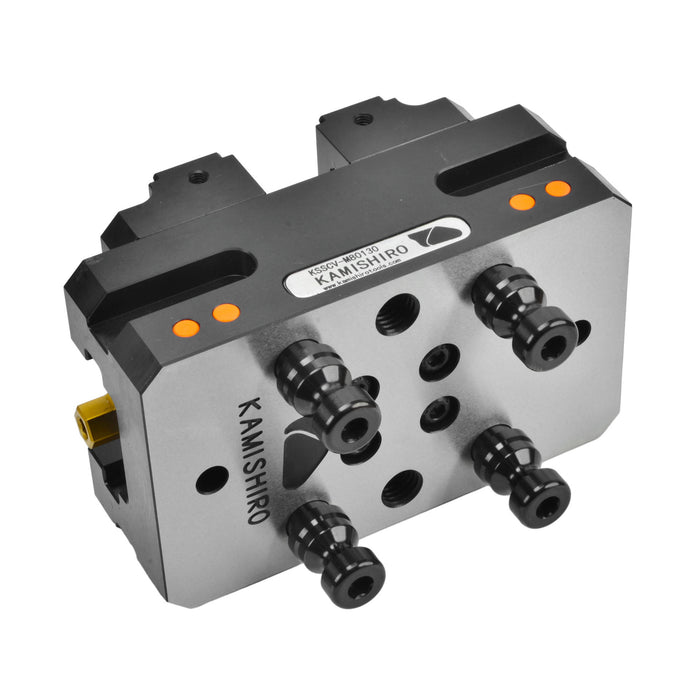

• Compatible with 52mm zero point clamping systems

• Works with Lang Zero Point Clamping Systems

• Self-centering jaws with central adjustment for precise clamping

• Saw-shaped jaws for a strong grip on non-hardened materials

• Precision T-guide rail for improved accuracy

• Reversible and replaceable jaws for easy maintenance

• Clamping Force 32 KN

Specifications:

• U PERPENDICULARITY: 0.02mm
• Parallelism: 0.02mm
• Model: KSSCV-M80170
• Size: 170 × 80 × 64 mm (6.69" × 3.14" × 2.5")
• Material: Alloy steel
• Hardness: HRC48-55
• Jaw width: 80mm
• Clamping Range: 6-125mm
• Torque: 70 Nm
• Weight: 4.4 Kgs

Includes

• • 1 set of hardened steel jaws

  • 1 wrench

  • 2 fitting screws

Additional Info

• Shipping time: Estimated 10–15 days

• Dispatch: Ships within 1–3 days after payment

• Note: Price does not include customs duties
