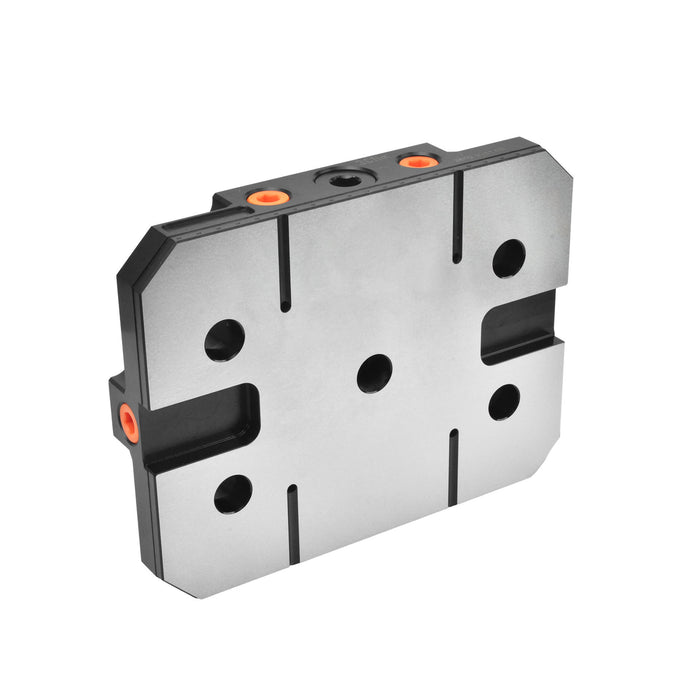

KAMISHIRO 150 x 116 Precision Zero 52 Point System

Kamishiro Zero-Point System

The Kamishiro Zero-Point System is designed around a proven positioning principle using a single plane and four precise locating pins. This advanced system offers exceptional precision and a compact footprint, maintaining consistent accuracy even after multiple removals and re-installations.

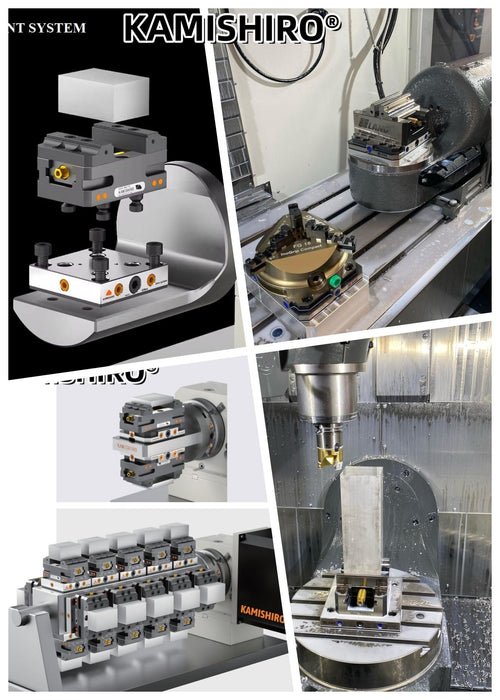

Compatible with pallets, fixtures, vises, and workpieces, the Kamishiro system allows for rapid setup and changeover, significantly reducing downtime. With a positioning accuracy of ≤0.005mm and two stud options—52mm and 96mm centers—Kamishiro helps streamline your setups while maximizing machine uptime.

Product Specifications

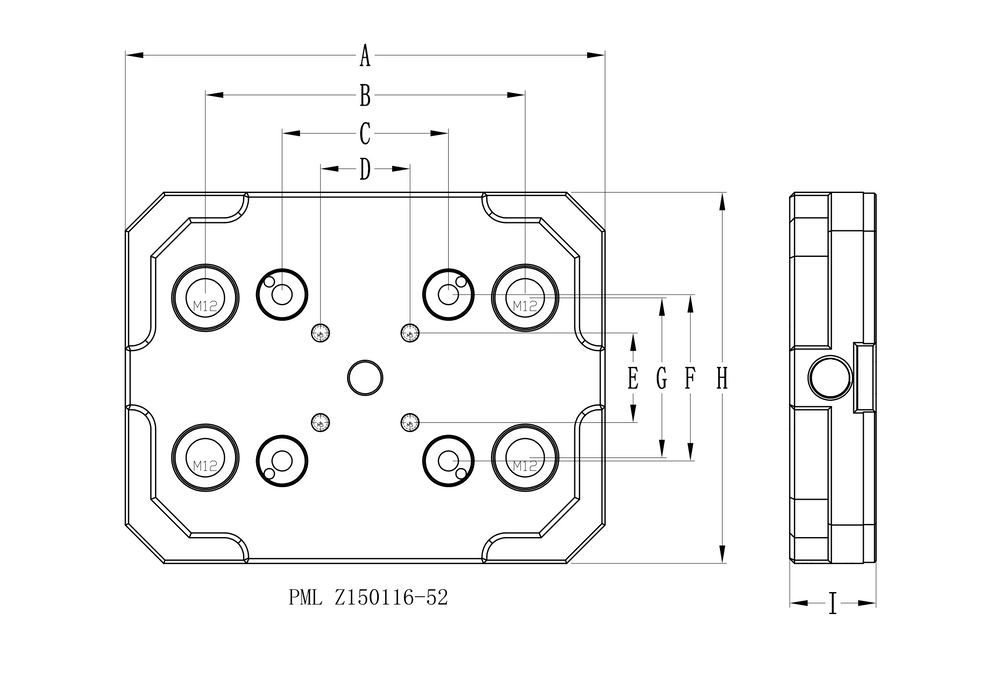

• Model: PML Z150116-52

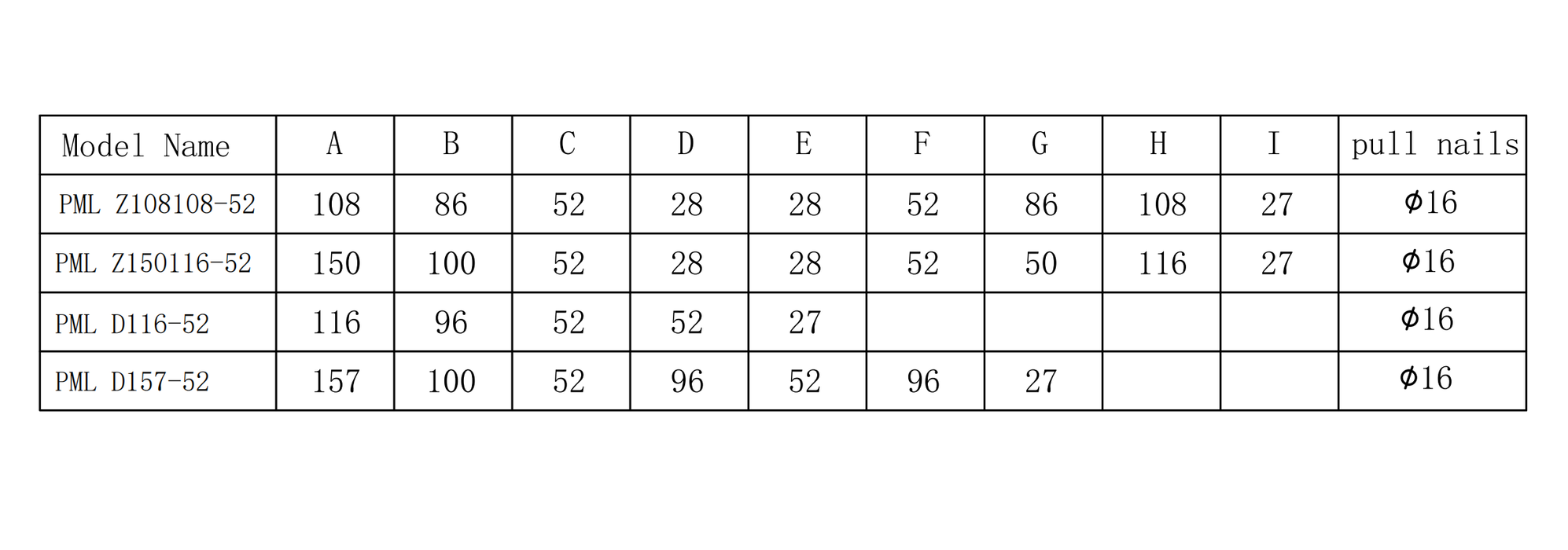

• Size: 150 × 116 × 27 mm (5.91" × 4.57" × 1.06")

• Weight: 4 kg

• Material: Alloy Steel

• Hardness: HRC48–55

• Parallelism: 0.02 mm

• Usage: Clamping system

• Core Components: Zero-pointing base, clamping studs

• Feature: Durable / Precise

Additional Information

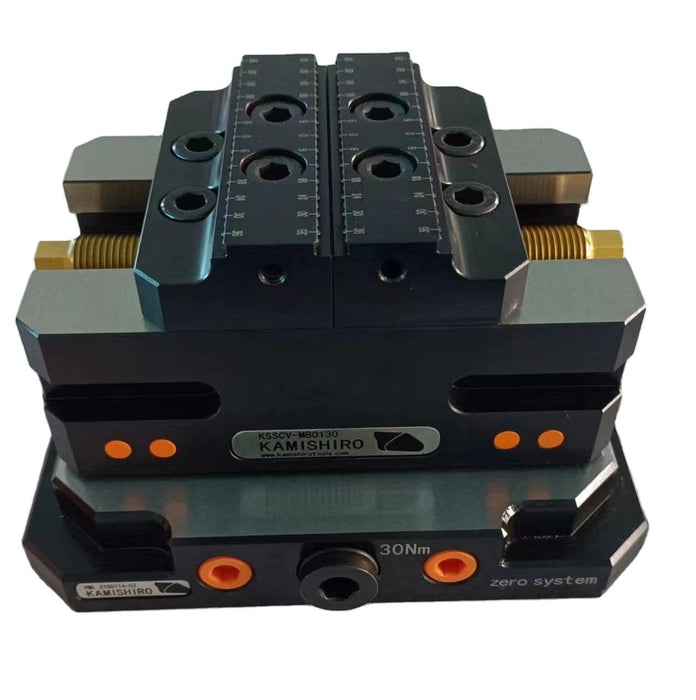

• PML is suitable for 52mm Self Centering Vise
• PML Compatible with Lang 52mm Self Centering Vise
• Repeatable clamping accuracy：0.005mm
• Each product includes: Clamping studs (4pcs) and M8 screws (4pcs)
• This price does not include customs duties.
• The transportation time is 10-15 days.
• Delivery within 2~8 days after payment.

Precautions & Maintenance Guidelines

• Handle with Care
  Avoid contact with sharp objects to prevent surface scratches or damage.

• Do Not Tighten Without a Workpiece
  Never tighten the tension adjustment bolt without a workpiece installed. Doing so may cause permanent deformation or damage to the fixture.

• Clean & Store Properly
  After each use, clean the fixture thoroughly and store it in a safe, dry location. Protect it from impacts, abrasion, and exposure to corrosive substances such as acids or alkalis.

• Regular Maintenance
  Perform routine precision checks and replace any worn or consumable parts promptly to maintain optimal performance.

Shipping Information

• Shipping time: Estimated 10–15 days

• Dispatch: Ships within 1–3 days after payment

• Note: Price does not include customs duties
